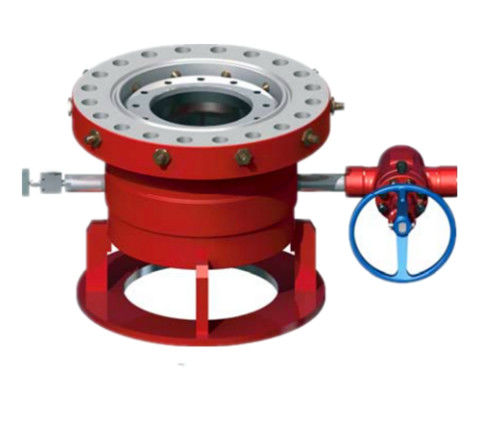

Horizontal 5000PSI Wellhead Flange Adapter Spool

Horizontal 5000PSI Wellhead Flange Adapter Spool
Horizontal 5000PSI Wellhead Flange Adapter Spool Horizontal 5000PSI Wellhead Flange Adapter Spool Horizontal 5000PSI Wellhead Flange Adapter Spool

Großes Bild :  Horizontal 5000PSI Wellhead Flange Adapter Spool

Produktdetails:
Herkunftsort: Xi'an China
Markenname: TR Solids Control
Zertifizierung: API 6A, ISO 9001
Modellnummer: TRST
Zahlung und Versand AGB:
Min Bestellmenge: 1 PC
Preis: verhandelbar
Verpackung Informationen: Palette oder Holzetui
Lieferzeit: 20 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 80000 PC pro Monat
Ausführliche Produkt-Beschreibung
Nominale Bohrung: 7 1/16“--29 1/2“ Druck: 2000 ~15000psi
Struktur: Horizontal Bohrungsprogramm: Einzelnes Stadium
Wohle Art: Fahrgestelle gut Anwendung: Ölquelle
Hervorheben:

Wellhead Flange Adapter Spool

,

5000PSI Flange Adapter Spool

,

Single Stage Horizontal Casing Spool

API 6A Wellhead Flange Adapter Spool Casing Spool



Product Introduction

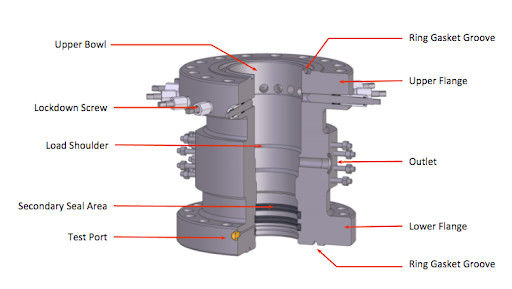

Casing head spool is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well.

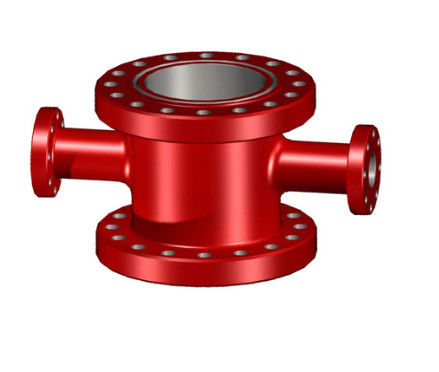

Spacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular membersSpacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular members.



Main Benefits of Our Casing & Tubing Drilling Spool



  • Designed and manufactured with reference to API 16A technical specifications.
  • All steel tanks are welded with stainless steel for long-term anti-corrosion.
  • Made from high-strength alloy and processed specially with heating treatment.
  • Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR-0175 technical specifications.
  • Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
  • Top & bottom connections and outlets as per customer design requirements by either flanged or clamp connections.



Technical Information of Casing & Tubing Drilling Spool



Casing Spool
Bottom Flange size Working pressure Top Flange Size Working Pressure Outlet A B C D Approx.Weight
in psi in psi   in in in in lbs kg
11 3,000 11 3000 2-1/16"Stdd 20-5/8 10-1/4 10-7/8 10 755 344
11 3,000 11 5000 2-1/16"Stdd 22-1/4 12-3/4 10-7/8 10 835 380
11 5,000 11 5000 2-1/16"Stdd 23-7/8 12-3/4 10-7/8 10 910 414
11 5,000 11 10000 1-13/16"Stdd 24-3/4 13-5/8 10-7/8 10 1210 550
11 10,000 11 10000 1-13/16"Stdd 25-5/8 14-1/2 10-7/8 10 1410 641
13-5/8 3,000 11 3000 2"LP 22-5/8 10-1/4 10-7/8 10 680 310
13-5/8 3,000 11 3000 2-1/16"Stdd 22-5/8 10-1/4 10-7/8 10 799 364
13-5/8 3,000 11 5000 2"LP 25-1/4 12-3/4 10-7/8 10 1140 519
13-5/8 3,000 11 5000 2-1/16"Stdd 25-1/4 12-3/4 10-7/8 10 1168 531
13-5/8 5,000 11 5000 2-1/16"Stdd 25-1/8 12-3/4 10-7/8 10 1430 650
13-5/8 5,000 11 10000 1-13/16"s 26 13-1/2 10-7/8 10 1631 742
21-1/4 2,000 13-5/8 3000 2-1/16"Stdd 26-3/4 10-5/8 13-1/2 12-1/2 1755 798
20-3/4 3,000 13-5/8 3000 1-13/16"s 27-5/8 10-5/8 13-1/2 12-1/2 1855 844
20-3/4 3,000 13-5/8 5000 2-1/16"Stdd 28-5/8 12-1/8 13-1/2 12-3/8 1950 887



Horizontal 5000PSI Wellhead Flange Adapter Spool 0



Our Service


1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
