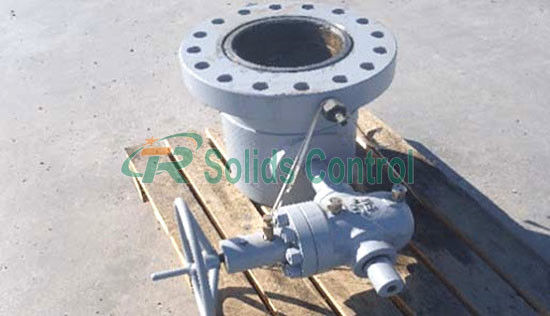

5000 Psi Oilfield Wellhead Integrated Casing Head

5000 Psi Oilfield Wellhead Integrated Casing Head
5000 Psi Oilfield Wellhead Integrated Casing Head 5000 Psi Oilfield Wellhead Integrated Casing Head

Großes Bild :  5000 Psi Oilfield Wellhead Integrated Casing Head

Produktdetails:
Herkunftsort: Xi'an China
Markenname: TR Solids Control
Zertifizierung: API 6A, ISO 9001
Modellnummer: TRYGT
Zahlung und Versand AGB:
Min Bestellmenge: 1 PC
Preis: verhandelbar
Verpackung Informationen: Palette oder Holzetui
Lieferzeit: 20 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 90000 PC pro Monat
Ausführliche Produkt-Beschreibung
Größe: 9" - 21 1/4" Verpackung: Holzkiste
Betriebstemperatur: -60℃~390℃ (- 75℉-734℉) Druck: 5000 P/in
Garantie: 1-jährig Gewicht: 172 KILOGRAMM
Hervorheben:

Wellhead Integrated Casing Head

,

5000 psi Integrated Casing Head

,

5000KN Drill Spare Parts

Drill Rig Oilfield Wellhead Integrated Tubing and Casing Head



Product Descrption



Casing head is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well. This is the primary interface for the surface pressure control equipment, for example blowout preventers (for well drilling) or the Christmas tree (for well production).

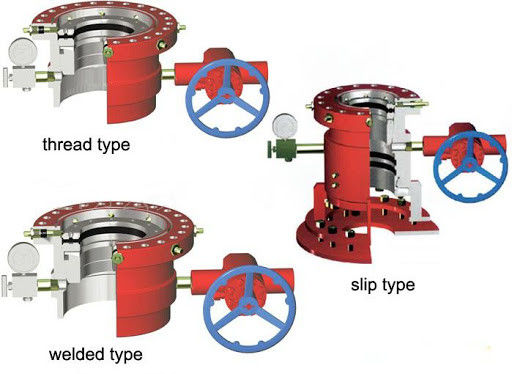

Casing Head provided by us can used for single completions and model of dual completions. Casing head and casing spool use standard design, and can apply to all kinds of JMP slip and mandrel type casing hanger.



Bottom connection can be CSG,BTC,SOW or slip-lock. We can also provide landing plate as per request.side outlets can be threaded or studded.



Product Details



  • Accepts a full line of single completion tubing hangers.
  • Providing a 45°landing shoulder capable of supporting maximum loads.
  • Providing a sealing bore for hanger and packing.
  • Providing secondary sealing for previous casing top.
  • Providing a support and testing BOP after well completion.



Product Application



  • Our Casing Head can be used in onshore and offshore environments, for general and sour service and in conventional or specialty wellhead systems.
  • PR-1 certified
  • PSL 1 to 3G certified
  • Available with or without lockscrews
  • Available in DD-NL, EE-NL, FF-NL and HH-NL trims
  • Available in nominal flange sizes 11″ to 13-5/8″
  • Optional landing base plate assemble for 20″ to 30″ conductor pipe



Technical Parameters of TR Wellhead Casing Head



Casing Program 20"×133/8" ×95/8" ×7" or 51/2"
Flanged Outlet PFF35/80:R35
PFF70/65:BX153
Load Capacity Mixmum 5000KN
Hanger Specification 4",41/2",5",51/2",7"
Working Pressure 35MPa~70MPa
Performance Requirement Grade PR1
Product Specification Grade PSL1-3
Temperature P·U(-29~121)
Material Class AA~FF



5000 Psi Oilfield Wellhead Integrated Casing Head 0
