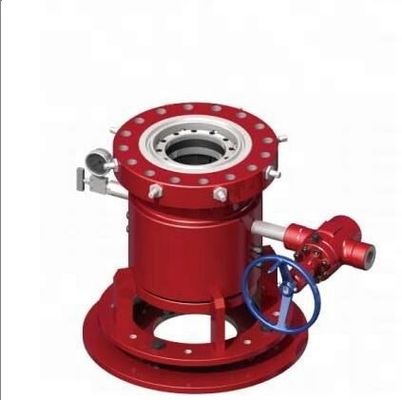

Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger

Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger
Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger

Großes Bild :  Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger

Produktdetails:
Herkunftsort: Xi'an China
Markenname: TR Solids Control
Zertifizierung: API 6A
Modellnummer: TR-YGQ
Zahlung und Versand AGB:
Min Bestellmenge: 1 PC
Preis: verhandelbar
Verpackung Informationen: Palette oder Holzetui
Lieferzeit: 20 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 80000 PC pro Monat
Ausführliche Produkt-Beschreibung
Größe: 3 3/4" (95.3mm) ~26" (660.4mm) Druck: 2000-20000 P/in
Anwendung: Brunnenbohrung Farbe: Rot, weiß
Medium: Wasser/Öl-/Gas Paket: Holzetui
Hervorheben:

Wellhead Mandrel Type Casing Hanger

,

3000psi Mandrel Type Casing Hanger

,

Well Drilling Mandrel Casing Hanger

Wellhead Equipment API 6A Mandrel Type Casing Hanger



Product Descrption



The lowest part of the wellhead that is almost always connected to the surface casing string, and provides a means of suspending and packing off the next casing string. Providing attachment to the surface casing string through the type of bottom connection (Slip-on-weld, threaded, Sliploc), the casing head is typically qualified to withstand up to 10,000 psi working pressure. It suspends the casing and packs off the next casing string while providing annular outlets, as well as supporting the BOP while drilling the remaining stages.



Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.



Basic Parameters



  • Applicable place: applicable to various casing procedures
  • Test pressure: take 80% of the casing resistance to external extrusion or working pressure, and take the low value for the two
  • Working medium: oil, natural gas, mud, gas containing H2S and CO2
  • Operating temperature: - 46 & ordm; C ~ 121 & ordm; C (Lu level)
  • Specification level: PSL1 ~ 4
  • Energy level: PR1 ~ 2



Main Features of Our Wellhead Casing Hanger



  • Temperature range: -46°C ~121°C.
  • Method to set the seal: casing string weight.
  • Sustain 50% load of casing tensile strength.
  • Two slip components suitable for hanging casing strings in heavy-duty conditions.
  • Designed with lock-up screws to prevent accidental open.



Technical Parameters of TR Wellhead Casing Hanger



Rated operating pressure
psi(MPa)
Nominal bore diameter
in(mm)
Bypass bore diameter
in(mm)
Outer diameter of the casing for the hangerin(mm)
2000(13.8) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
3000(20.7) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
5000(34.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
10000(69.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
15000(103.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
20000(138.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)

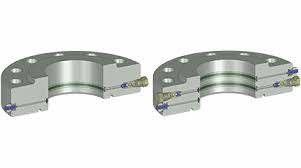

Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger 0


The target of TR Solids Control: To establish an international first-class enterprise, and become a professional petroleum equipment supplier,supply chain company and oilfield engineering services company.; "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission and Provide consistent after-sales service.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
