Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
Startseite ProdukteBohrgerät-Ersatzteile

Thread Forging PR2 26" 20000PSI Wellhead Tubing Head

Berufskörper steuern Hersteller. Ihre Ersetzenschwingsiebe haben lange Service-Zeit und gute Behandlung. Sie helfen uns viel!

—— Herr Samir

Ich kaufte 10 Kreiselpumpe der PC TRSB8*6-12J von der TR-Körper-Steuerung. Sie sind schön und haben wirklich gute Qualität und rücksichtsvoll Kundendienst!

—— Herr Waren

Wir bestellten einen Satz des Schlammsystems für unser Ölfeldbohrungsfeld, gezeigte gute Leistung TR Produkt im Standort. Wir mögen dass sehr viel!

—— Diego Olbrich

Tr-Schwingsiebe haben hochwertigen und guten Preis. Wir haben sie von TR für mehr als 4 Jahre gekauft.

—— Nghiem Thic Hai

Gute Firma mit nettem Service und hohe Qualität und hohes Ansehen. Ein unseres zuverlässigen Lieferanten, Waren werden in Zeit und in nettes Paket geliefert.

—— Hossein Jafari

Dank für Ihren guten Kundendienst. Ausgezeichnete Trainings- und Technologieunterstützung hilft mir viel.

—— Frau Crina

Wir stellen Gebrauch TRZS703 Schiefer-Schüttel-Apparat seit 2012, jetzt wir haben 8 Sätze an, die im Ölfeldstandort unseres Kunden, perfekte Maschine mit angemessenem Preis arbeiten.

—— S.A. Kazi

Ich bin online Chat Jetzt

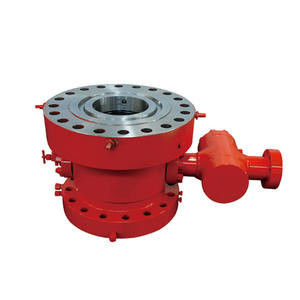

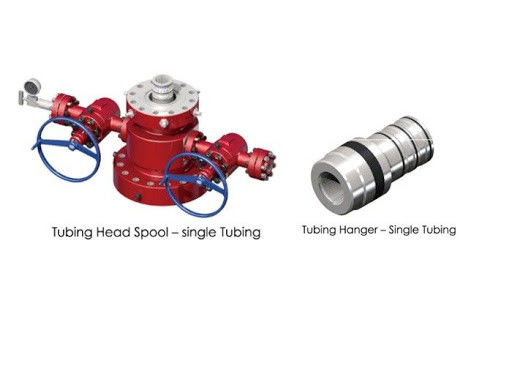

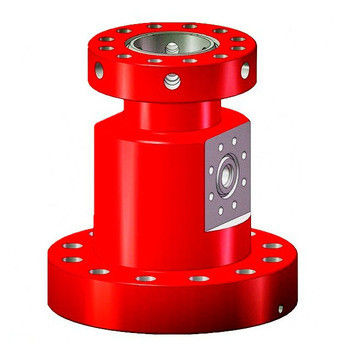

Thread Forging PR2 26" 20000PSI Wellhead Tubing Head

Thread Forging PR2 26" 20000PSI Wellhead Tubing Head
Thread Forging PR2 26" 20000PSI Wellhead Tubing Head Thread Forging PR2 26" 20000PSI Wellhead Tubing Head Thread Forging PR2 26" 20000PSI Wellhead Tubing Head

Großes Bild :  Thread Forging PR2 26" 20000PSI Wellhead Tubing Head

Produktdetails:
Herkunftsort: Xi'an China
Markenname: TR Solids Control
Zertifizierung: API 6A, ISO9001
Modellnummer: TRYGT
Zahlung und Versand AGB:
Min Bestellmenge: 1 PC
Preis: verhandelbar
Verpackung Informationen: Palette oder Holzetui
Lieferzeit: 20 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 60000 PCS pro Monat
Ausführliche Produkt-Beschreibung
Größe: 3 3/4" ~26" Verbindungsart: Flansch/Klammer/Faden
Vorteil: Abnutzungs-Widerstand Paket: Holzetui
Verarbeitung der Art: Schmieden Farbe: Rot, weiß
Hervorheben:

20000PSI Wellhead Tubing Head

,

26" Wellhead Tubing Head

,

PR2 Drill Tubing Head

High Pressure 20000 PSI Wellhead Tubing Head and Spool



Product Introduction


Bottom Connections Bolt-through flange, studded flange and clamp-hub connections are available. The type and pressure rating used must match the top flange of the previous casing spool or crossover flange. Bolt-through flange connections are the most popular and economical type of connection in certain parts of the world. Clamp-hub connections are sometimes specified, because they are much faster to make up and because they reduce the diameter and weight of the assembly when space limitations are present.



Top Connections FMC Surface Wellhead tubing heads have either bolt-through flange or clamp-hub top connections, which are compatible with all FMC tubing head adapters. The producing pressure of the well normally determines the pressure rating of the top connection.



API 6A, suspend and seal around a string of casing or tubing, the spool can contain a restricted area sealing means at or near the face of the lower connector, permitting a pressure rating greater than the pressure rating of the lower connector in the section above the restricted area sealing means.



Main Benefits of TR Wellhead Tubing Head



  1. Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
  2. Made from high-strengh alloy and processed specially with heating treatment.
  3. All stell tanks are welded with staintess stell for long-term anti-corrosion.
  4. Designed and manufactured with reference to API 6A technical specifications.
  5. Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
  6. Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR 0175 technical specifications.



Technical Information of TR Wellhead Tubing Head



Item Describetion
WP 2000Psi – 20000Psi
M/C AA,BB,CC,DD,EE,FF,HH
T/C -60-390 (-75-734℉)
PSL PSL1, PSL2, PSL3, PSL3G, PSL4
PR PR1, PR2
Medium Oil, Gas, Mud



Thread Forging PR2 26" 20000PSI Wellhead Tubing Head 0



Our Service


1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the problems ASAP.
4.We can provide product repair services.
The optimaler price, the best quality, the fastest speed, the best service. Your every piece of advice to us we will be very seriously treatment. If you have any suggestion to us, please surely tell us by mail in a timely manner You are not just a visitor, but our partner in common progress.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
