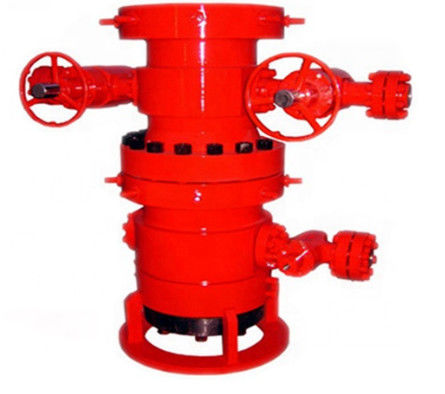

Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head

Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head
Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head

Großes Bild :  Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head

Produktdetails:
Herkunftsort: Xi'an China
Markenname: TR Solids Control
Zertifizierung: API 6A, ISO9001
Modellnummer: TRYGT
Zahlung und Versand AGB:
Min Bestellmenge: 1 PC
Preis: verhandelbar
Verpackung Informationen: Palette oder Holzetui
Lieferzeit: 20 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 80000 PC pro Monat
Ausführliche Produkt-Beschreibung
Größe: 3 3/4" ~26" Verarbeitung der Art: Schmieden
Verwendung: Brunnenbohrung Medium: Schlamm, Wasser, Erdgas, Rohöl
Warraty: 1-jährig Qualität: Hohe Stufe
Hervorheben:

26" Casing Tubing Head

,

PSL1 Casing Tubing Head

,

FF Wellhead Tubing Head

API 6A Oilfield Wellhead Tubing Head / Tubing Head Adapter



Product Overview



As experienced wellhead assembly manufacturers, we provide customers with a totally compatible and warranted lump sum turnkey package—all under API License and ISO Certification. Our qualified wellhead equipment engineers provide customers with a single point of contact for all their parts and warranty requirements issues.



Top Connections FMC Surface Wellhead tubing heads have either bolt-through flange or clamp-hub top connections, which are compatible with all FMC tubing head adapters. The producing pressure of the well normally determines the pressure rating of the top connection.



Providing a transition from the wellhead to the tree, the tubing head adapter is used for both single and multiple completions. FMC's standard tubing head adapter product line consists of nine models, each designed to work with a set group of tubing heads and hangers. With threaded, flanged, or studded-top connections, most adapters can be machined with a hydraulic supply inlet for downhole control lines.



Specialities of TR Wellhead Tubing Head

  1. Designed and manufactured with reference to API 6A technical specifications.
  2. Made from high-strengh alloy and processed specially with heating treatment.
  3. All stell tanks are welded with staintess stell for long-term anti-corrosion.
  4. Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
  5. Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
  6. Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR 0175 technical specifications.



Structure of Tubing Head


Tubing head is usually a spool with both flanged ends, which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.



Technical Data of TR Wellhead Tubing Head



Item Describetion
WP 2000Psi – 20000Psi
M/C AA,BB,CC,DD,EE,FF,HH
T/C -60-390 (-75-734℉)
PSL PSL1, PSL2, PSL3, PSL3G, PSL4
PR PR1, PR2
Medium Oil, Gas, Mud



Well Drilling FF HH API 6A PSL1 26" Casing Tubing Head 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city, Shannxi Province, China.



And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools. Currently, our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
